Ball Valves

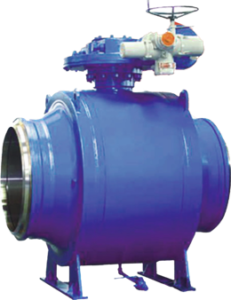

Trunnion

  • Trunnion ball valves provide bi-directional bubble tight shut-off, API 6D, API 598 and ISO 5208
  • A multi-seal stem sealing arrangement consisting of O-rings and pre-energized graphite seal rings ensures low fugitive emissions ISO 15848
  • Integrated actuator mounting pad is designed and drilled for ISO 5211 for direct mounting actuators and gear operators
  • NACE MR0175 / ISO 15156-1 is standardĀ
  • Emergency seat sealant injectors are standard
  • 100% Testing, 100% Serialization, 3 Year Warranty
Get a Quote

Available In

  • 2ā€ to 48ā€; ANSI Cl.150 – 2500; Flanged and Buttweld; -46C/-50F to 200C/392F; API 607 / API 6FA
  • Body: A216WCB, A216WCC, A352LCC, A351CF8M, A351CF3M, A995 4A/5A/6A, F51/F53/F55
  • Ball:Ā  CS+ENP, ASTM A351 CF8M/CF8/CF3M, ASTM A995 4A/5A/6A, A182 F316/304/316L/F51/F53/F55
  • Seat: PTFE, RPTFE, Devlon, Delrin, PEEK, ULTRA, Metal to Metal
  • Seat Rings: SPE (Self Relieving, Single Piston Effect), Double Piston Effect, Double Isolation and Bleed DIB-1 and DIB-2, Lip Seal
